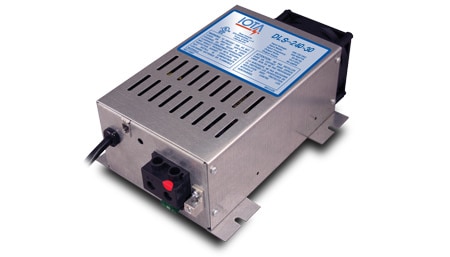

IOTA DLS-30 AMP 12V Battery Charger – 240VAC Input

15-IA-003012
Sold by: Solar Wholesaler Ltd.
Not yet reviewed | SKU: 15139302
IOTA
15-IA-003012 DLS-30 AMP 12V Battery Charger – 240VAC Input 0
  • Complete your project:
  • Underlayment
  • moldingMolding
  • adhesivesAdhesives
  • care-productCare Products
  • Share:

Uh oh ... looks like this product has been discontinued.

Fortunately, we have wide range of products just like it! Scroll down to see our recommendations.

Product Overview

The DLS-240-30 Power Converter/Battery Charger from IOTA Engineering converts nominal 216-264 AC voltage to 13.4 DC voltage for both DC load operation and 12V battery charging. As a power supply, the unit's tightly controlled regulation allows the user to operate a nominal 12VDC load up to 30 amps. As a battery charger, the unit will maintain the battery, delivering its full-rated current when the battery capacity falls sufficiently low. The voltage is set to deliver its maximum current for the necessary period of time to minimize undue stress to the battery caused by heating of its cells. This helps to ensure the longest possible life of the battery. Over time, as the battery nears its full capacity, the DLS-240-30 will automatically drop the current, providing a float-charge to the battery to prevent self-discharge of the cells.

  • Input Voltage: 216-264 VAC
  • Input Frequency: 50-60 Hz
  • Output Voltage: 13.4 VDC
  • Output Amperage: 30 Amps
  • UL Listed for US and Canada

Discontinued. For reference only.
Warranty, Installation & Other info
You will need Adobe® Reader to view documents. Download it from the Adobe Web Site.
Specifications
Discontinued. For reference only.
Amps30
Voltage (VDC)13.40
Product Width7
Length (in.)10
Height (in)4
Weight (lbs)6
Packaging Dimensions (inches)Height: 4 Length: 10 Width: 7
